| Updated February 1st, 2012 | |||||||||

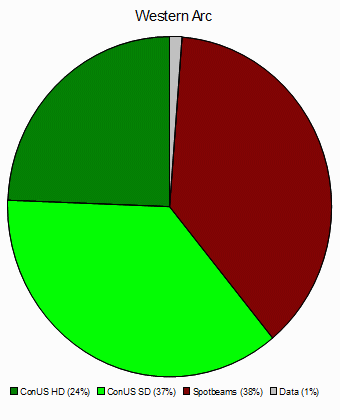

| 119° | 110° | 129° |
DISH holds FCC license to 50 transponders at 119 and 110 and leases 32 transponders at 129. | ||||||
| 1 | Spots | QPSK | Spots | ||||||
| 2 | Spots | QPSK | Spots | ||||||
| 3 | Spots | RSN 8 | Spots | ||||||
| 4 | Spots | Spots | Spots | ||||||
| 5 | Spots | QPSK | Spots | ||||||
| 6 | QPSK | QPSK | Spots | ||||||
| 7 | HD 7 DATA | RSN 1+7 | Spots | ||||||
| 8 | QPSK | QPSK | Spots | ||||||
| 9 | QPSK | QPSK | Spots | ||||||
| 10 | QPSK | QPSK | Spots | ||||||
| 11 | QPSK | QPSK | Spots | ||||||
| 12 | QPSK | Spots | Spots | ||||||
| 13 | QPSK | HD 8 DNL | Spots | ||||||
| 14 | QPSK | QPSK | Spots | ||||||
| 15 | AAD SD | QPSK | Spots | ||||||
| 16 | QPSK | QPSK | Spots | ||||||
| 17 | QPSK | DNS 4 | HD 8 | ||||||
| 18 | QPSK | Spots | HD 8 | ||||||
| 19 | QPSK/EPG | HD 8 | HD 9 | ||||||
| 20 | QPSK | Spots | HD 9 | ||||||
| 21 | QPSK | QPSK/EPG | QPSK/EPG | ||||||
| 22 | QPSK 1 | HD 9 | |||||||
| 23 | Spots | HD 8 | |||||||
| 24 | QPSK | HD 7+1 | |||||||
| 25 | Spots | RSN 8 | |||||||
| 26 | Spots | HD 7 DATA | |||||||
| 27 | Spots | RSN 7 | |||||||
| 28 | HD 8 | ||||||||
| 29 | Spots | HD 8 | |||||||
| 30 | HD 8 DNL | ||||||||
| 31 | Spots | HD 9 | |||||||
| 32 | HD 9 | ||||||||
| 157 active (16 RSN and 4 DNS) on 20 TPs - 8 to 32 slots available (on transponders used for HD)
(New capacity for 8 RSNs on 110 TP 3 and 72.7 TP 10 not included in counts above.) (Assuming 8 HD channels per transponder - note five transponders have 9. High end is 9 HD per transponder on 21 transponders.) | |||||||||

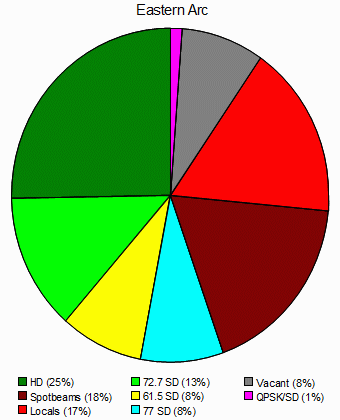

| 61.5° | 72.7° | 77° |
DISH holds FCC license to 30 transponders on 61.5 and leases transponders at 72.7 and 77. "Future" transponder space is TP 26 at 77 (not in current network tables). TP 23 and 24 at 61.5 are available to DISH via special temporary authority. | ||||||
| 1 | Spots | RSN 8 | Vacant | ||||||
| 2 | Locals | Vacant | Vacant | ||||||
| 3 | Spots | HD 8 DNL | DISH Mexico | ||||||
| 4 | Locals | HD 5 | Locals | ||||||
| 5 | Spots | 8PSK | Locals | ||||||
| 6 | 8PSK | HD 9 | Locals | ||||||
| 7 | Spots | 8PSK | DISH Mexico | ||||||
| 8 | Locals | RSN 8 | Vacant | ||||||
| 9 | Spots | 8PSK | Vacant | ||||||
| 10 | HD 7 DNL | RSN 8 | Locals | ||||||
| 11 | Spots | HD 8 | DISH Mexico | ||||||
| 12 | 8PSK | HD 10 | Locals | ||||||
| 13 | Spots | HD 8 | Vacant | ||||||
| 14 | QPSK | Test | Locals | ||||||
| 15 | Spots | 8PSK | DISH Mexico | ||||||
| 16 | Locals | HD 9 | Locals | ||||||
| 17 | Locals | HD 8 | Locals | ||||||
| 18 | 8PSK | HD 9 | Locals | ||||||
| 19 | Locals | HD 8 | DISH Mexico | ||||||
| 20 | Locals | Vacant | Locals | ||||||
| 21 | QPSK | 8PSK/EPG | Locals | ||||||
| 22 | Locals | 8PSK | Vacant | ||||||
| 23 | Test | 8PSK | DISH Mexico | ||||||
| 24 | Vacant | Vacant | Latino | ||||||
| 25 | HD 8 | 8PSK | Vacant | ||||||
| 26 | Locals | Vacant | |||||||
| 27 | Locals | HD 9 | DISH Mexico | ||||||
| 28 | HD 8 | HD 9 | Latino/DNL | ||||||
| 29 | QPSK/EPG | RSN 8 | Locals | ||||||
| 30 | Vacant | Vacant | Locals | ||||||
| 31 | HD 8 | 8PSK | DISH Mexico | ||||||
| 32 | Locals | DNS 4+5 | Vacant | ||||||
| Red numbers are unavailable or moving HDs (Channels moving from 61.5 to 72.7) | |||||||||
| 157 active (16 RSN and 4 DNS) on 20 TPs
The pre January 30th, 2011, layout is shown at the bottom of this page. | |||||||||
Transponders marked QPSK or 8PSK have SD channels, Locals transponders have local channels (HD and SD), Latino transponders have DISH Latino channels. Transponders marked Spots have multiple spotbeams carrying locals (or HD to Alaska/Hawaii/Puerto Rico). Transponders marked AAD are leased to All American Distants/NPS for their distant networks service.
Most HD channels have multiple mirrors - only one occurance of each channel per transponder is counted.
Red shaded transponders are available to DISH Network but have but have no active channels. (On 61.5 TP 23 and 24 are available for temporary programming per the FCC.)
Gray shaded transponders are not available to DISH Network. (On Western Arc these transponders are licensed to DirecTV.)
Black shaded transponders are not available to DISH Network in the US. These transponders are used to serve DISH Mexico customers in Mexico.
| Eastern Arc January 29th, 2011 (Prior to the problem at 77°) | |||||||||
| 61.5° | 72.7° | 77° |
DISH holds FCC license to 30 transponders on 61.5 and leases transponders at 72.7 and 77. "Future" transponder space is space being vacated by DirecTV at 72.7. TP 23 and 24 at 61.5 are available to DISH via special temporary authority. | ||||||
| 1 | Spots | 8PSK | Locals | ||||||
| 2 | HD 8 | Locals | |||||||
| 3 | Spots | HD 7 DNL | DISH Mexico | ||||||
| 4 | QPSK | Locals | |||||||
| 5 | Spots | 8PSK | Locals | ||||||
| 6 | HD 8 | Locals | |||||||
| 7 | Spots | 8PSK | DISH Mexico | ||||||
| 8 | QPSK | Locals | |||||||
| 9 | Spots | 8PSK | Locals | ||||||
| 10 | HD 9 DNL | Locals | |||||||
| 11 | Spots | 8PSK | DISH Mexico | ||||||
| 12 | HD 9 | Latino | |||||||
| 13 | Spots | HD 8 | Locals | ||||||
| 14 | QPSK | Locals | |||||||
| 15 | Spots | 8PSK | DISH Mexico | ||||||
| 16 | HD 8 | HD 7 | Locals | ||||||
| 17 | Locals | HD 8 | Locals | ||||||
| 18 | HD 8 | Locals | |||||||
| 19 | Locals | 8PSK | DISH Mexico | ||||||
| 20 | RSN 3+5 | Locals | |||||||
| 21 | QPSK | 8PSK/EPG | Latino DNL | ||||||
| 22 | HD 8 | 8PSK | Locals | ||||||
| 23 | Test | 8PSK | DISH Mexico | ||||||
| 24 | QPSK | Locals | |||||||
| 25 | HD 6 | 8PSK | Locals | ||||||
| 26 | |||||||||
| 27 | HD 8 | HD 9 | DISH Mexico | ||||||
| 28 | HD 8 | HD 8 | Locals | ||||||
| 29 | QPSK/EPG | 8PSK | Locals DNL | ||||||
| 30 | RSN 8 | Locals | |||||||
| 31 | HD 8 | 8PSK | DISH Mexico | ||||||
| 32 | Locals | HD 8 | Locals | ||||||
